JIS Brass Stop-Check Valve

  • Model:JIS F7301/F7352
  • Specification:DN15-DN80
  • Temperature:≤ 80 ℃
  • Medium:Water, steam, oil and similar liquids
  • Pressure:5K,10K
  • Connection method:Flange
  • Driving method:automated
  • Material:Brass
x

Add QR code to serve you!

x
  • Product Overview
  • Performance Data
  • Size Weight

Japanese Standard brass Stop-Check Valve Overview

The Japanese Standard brass Stop-Check Valve is a combination valve that complies with the Japanese Industrial Standards (JIS) and integrates the functions of both a stop valve and a check valve. It features a brass valve body and threaded connections. Internally, it incorporates the sealing mechanism of a stop valve and the automatic opening/closing mechanism of a check valve. By rotating the handwheel, the medium can be shut off or allowed to flow, while in the open position, the valve automatically prevents medium backflow through the disc’s own weight or spring force.Designed specifically for general media such as water, oil, and air, this valve is suitable for pipeline systems with a nominal pressure rating of JIS 10K or lower. Commonly used in marine applications, building water supply and drainage systems, HVAC systems, and general industrial equipment, it provides an integrated solution for scenarios requiring manual shut-off and backflow prevention.

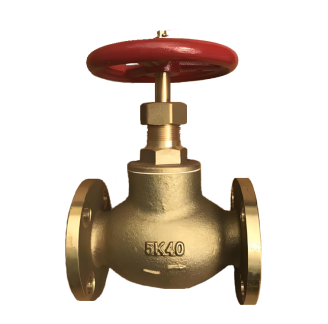

JIS Brass Stop-Check Valve Product Image

Japanese Standard brass Stop-Check Valve Features

1. Dual-Function Integrated Design

  Combines the controlled shut-off capability of a stop valve with the automatic backflow prevention function of a check valve, simplifying pipeline design, reducing installation points, and minimizing leakage risks.

2. Compliance with Japanese Standards

  Strictly adheres to standards such as JIS B2071/B2081, ensuring full compatibility with the Japanese standard system in terms of pressure ratings, structural dimensions, thread specifications, and material requirements.

3. brass Body with Corrosion Resistance

  Constructed from cast brass, offering excellent resistance to water and atmospheric corrosion. It is rust-resistant and suitable for a wide range of conventional fluid media.

4. Compact Structure and Ease of Operation

  The threaded connection facilitates simple installation, and the valve features a short face-to-face length. The handwheel provides intuitive opening and closing control, with clear open/close position indicators.

5. Cost-Effective and Easy Maintenance

  The integration of two valve functions offers high cost-effectiveness. In case of malfunction, the valve can be replaced entirely or specific internal components can be repaired, resulting in relatively low maintenance costs.

JIS Brass Stop-Check Valve Structure Diagram

Parts Name Material List

序 号NO.名称Name材料Material
4填料packingPTFE
3阀杆stem铜Brass
2阀瓣disc铜Brass
1阀体body铜Brass

性能规范表Performance Specification
公称压力Nominal Pressure5k/10kMpa
强度试验压力Shell Test10.5kg
密封试验压力Seal Test7.7kg
适用温度Suitable Temp.≤425


Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard JIS B200.

2. The connecting flange shall conform to the standard JIS B2240.

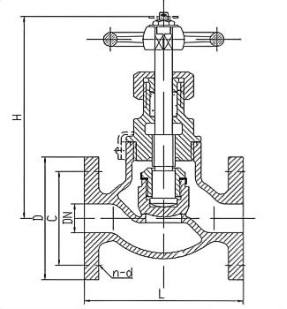

JIS Brass Stop-Check Valve View Drawing

JIS Brass Stop-Check Valve Dimensions Table

5K 日 标JIS F7301青铜直通截止阀
DNSIZELDPCDtn-dHW
15A1/2100806094-1213080
20 A3/41108565104-12140100
25 A11209575104-12160125
32 A11/414011590124-15170125
40 A11/216012095124-15190140
50 A2210130105144-15235140
65 A2-1/2250155130144-15260160
5K 日标JIS F7352 青铜直角截止阀
DNSIZELDPCDtn-dHW
15 A1/255806094-1213080
20 A3/4608565104-12140100
25 A1659575104-12160125
32 A11/48011590124-15170125
40 A11/28512095124-15190140
50 A2100130105144-15235140
65 A2-1/2115155130144-15260160
