The GRK tank wall manhole is a personnel access and inspection opening installed on the lower or middle sidewall of storage tanks. It features an elliptical or circular structure, with the flange welded directly to the tank shell. The manhole cover is equipped with a hinge, handwheels, and fastening devices, allowing quick opening when needed for operators to enter the tank for cleaning, inspection, maintenance, or replacement of internal equipment. Its core purpose is to provide a safe and convenient man-entry access for fixed roof tanks, floating roof tanks, and other large storage tanks in petroleum, chemical, and storage/transportation industries , while maintaining tight sealing after closure with gaskets and fasteners to prevent media leakage and ingress of external contaminants.

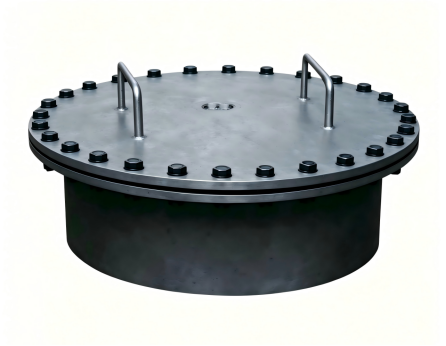

GRK tank wall manhole product drawing

Features

1. High structural strength for safety and reliability: Carbon steel or stainless steel reinforced construction provides high pressure resistance, meeting tank operating pressures and external load requirements.

2. Easy opening/closing with labor-saving operation: Equipped with handwheel or screw-type fastening mechanisms combined with hinges, allowing one person to easily open or lock the manhole cover.

3. Reliable sealing with zero leakage: Sealing surfaces use oil-resistant rubber (NBR), fluororubber (FKM), or PTFE gaskets to achieve tight media sealing after closure.

4. Flexible installation options: Flanged connection welded to tank shell; available in elliptical (approx. 300×400mm to 600×800mm) or circular (DN500, DN600) sizes to suit various tank constructions.

5. Corrosion-resistant materials: Body available in carbon steel (with anti-corrosion lining), 304/316L stainless steel; gasket materials suitable for oil products, chemical solvents, water, and other media.

6. Safety and explosion-proof design: Some models may feature explosion-proof locking devices or anti-static bonding to meet fire and explosion protection requirements for petrochemical tank farms.

7. Long service life with easy maintenance: Robust cast or welded construction resists deformation; gaskets are quickly replaceable; hinges and fasteners remain flexible with periodic lubrication.

8. Compliant with national standards: Designed and manufactured according to HG/T 21516 “Turnover cover plate type flanged manholes” or relevant tank accessory standards.
