H14W Internal Thread Swing Check Valve

  • Model: H14W-16P
  • Specification:DN15-50
  • Temperature:≤ 160 ℃
  • Medium:Water and aqueous media
  • Pressure:PN16
  • Connection method:NPT
  • Driving method:automated
  • Material:Stainless steel
x

Add QR code to serve you!

x
  • Product Overview
  • Performance Data
  • Size Weight

H14W Internal Thread Swing Check Valve Overview

The H14W Internal Thread Swing Check Valve is an automatic valve that utilizes internal thread connections and operates through a swinging motion of the disc around a fixed pin within the valve body to achieve one-way flow control. Major components, including the valve body and disc, are typically made of brass or stainless steel, ensuring a simple and durable structure.Its working principle involves the disc swinging open under the pressure of forward-flowing media. When forward pressure is lost or backflow occurs, the disc swiftly returns to the valve seat under its own weight and the force of the reverse flow, achieving automatic closure.Suitable for installation in both horizontal and vertical pipelines, this valve has minimal impact on flow resistance. It is widely used in building water supply and drainage systems, HVAC installations, general industrial equipment, and pump discharge pipelines. It effectively prevents backflow of media such as water, oil, and air, safeguarding upstream equipment.

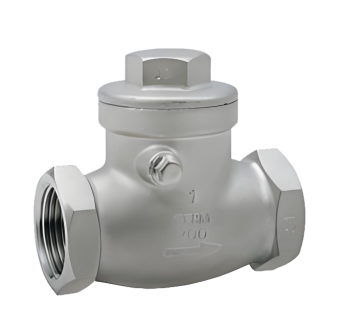

H14W Internal Thread Swing Check Valve Product Image

H14W Internal Thread Swing Check Valve Features

1. Flexible Installation Orientation

Compared to lift check valves, the swing-type design imposes fewer restrictions on installation direction. It can be installed on both horizontal pipelines and vertical pipelines with upward flow, offering greater adaptability.

2. Low Flow Resistance and High Flow Capacity

When open, the disc swings almost completely away from the flow path, minimizing flow obstruction and pressure loss. This makes it particularly suitable for systems with demanding flow rate and pressure drop requirements.

3. Simple and Reliable Structure

With fewer moving parts and a design centered around the disc’s rotation around a fixed pin, the valve operates reliably with a low failure rate. The smooth internal flow path also reduces the risk of debris accumulation.

4. Rapid Closure and Effective Sealing

The short return path of the disc enables quick closure, helping to mitigate water hammer effects. Paired with a precisely machined valve seat, the valve achieves excellent sealing performance to prevent medium backflow.

5. Compact, Durable, and Easy Maintenance

The internal thread connection ensures a compact design and straightforward installation. Constructed from brass or stainless steel, the valve offers strong corrosion resistance and a long service life. In case of failure, the valve can typically be replaced as a whole, keeping maintenance costs low.

H14W Internal Thread Swing Check Valve Structure Diagram

Parts Name Material List

序 号NO.名称Name材料Material
5阀座seat不锈钢stainless steel
4阀瓣disc不锈钢stainless steel
3销轴Pin不锈钢stainless steel
2摇杠Lever不锈钢stainless steel
1阀体body不锈钢stainless steel

性能规范表Performance Specification
公称压力Nominal Pressure1.6Mp
强度试验压力Shell Test2.4
密封试验压力Seal Test1.76
适用温度Suitable Temp.≤160


Dimensions Standard Requirements

1. The structural length of the valve shall conform to the standard GB/T 12221.

2. The connecting flange shall conform to the standard ISO 228.

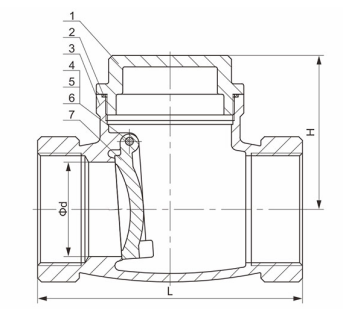

H14W Internal Thread Swing Check Valve View Drawing

H14W Internal Thread Swing Check Valve Dimensions Table

NPSdLH
DN15156142
DN20207549
DN25248558
DN323010060
DN403711470
DN504613479
