Overview

The F8745X groove fire pump control valve is a specialized control valve developed by our factory in accordance with national fire safety regulations and combined with the high reliability requirements of modern fire protection systems. This valve integrates multiple fire core functions such as hydraulic automatic control, slow start and fast stop of water pumps, anti backflow and water hammer elimination, emergency linkage control, etc. It is designed specifically for the safety guarantee of the outlet pipeline of fire pump groups. The valve adopts a groove type connection, which is easy and efficient to install. At the same time, a mature piston type hydraulic control structure is used, and an adjustable hydraulic damping device is built-in to achieve smooth and gradual opening of the water pump during startup and rapid segmented closing during emergency shutdown. It effectively absorbs and eliminates the high-pressure water hammer impact unique to the fire protection system, protecting the safety of the water pump and pipeline network. This valve does not require external power drive and relies entirely on system water pressure for intelligent control. It responds quickly and operates reliably, making it particularly suitable for key fire water supply pipelines such as fire hydrant systems, automatic sprinkler systems, and fire stabilization systems. This product has outstanding advantages such as sturdy structure, sensitive action, easy maintenance, and compliance with fire certification. It is the core control equipment that ensures the reliable standby state of the fire water supply system at all times. Welcome to consult and purchase.

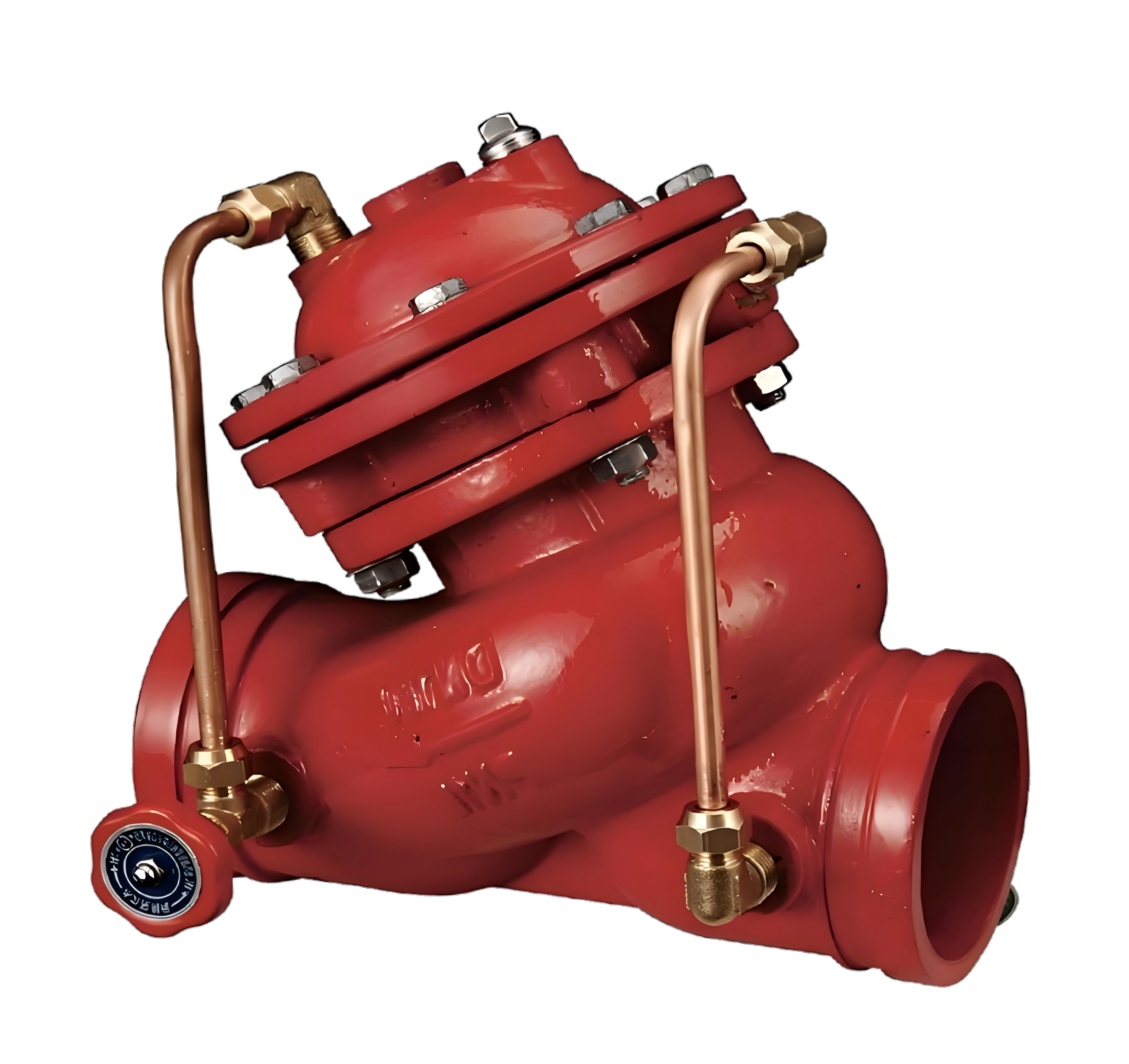

F8745X groove fire pump control valve product diagram

feature

The working principle of the F8745X groove fire pump control valve is based on hydraulic control and piston differential pressure principle, designed specifically for high reliability requirements of fire protection systems. The valve is automatically controlled by the system's own water pressure drive, mainly composed of a main valve body, a piston actuator, a pilot control valve group, and a multifunctional regulating module. Its core operating mechanism is divided into three stages: when the fire pump is started, the system pressure water enters the upper chamber of the piston through the diversion control pipeline, and the downward speed of the piston is controlled by a precisely adjusted damping device to achieve smooth and gradual opening of the valve, avoid pressure shock in the pipeline network, and protect the fire protection motor; During the normal operation of fire water supply, the valve should be kept fully open to ensure smooth water flow and meet the maximum flow and pressure requirements of the system; When the pump is stopped or the power is cut off due to an accident, the pressure at the front end of the valve drops sharply, triggering the action of the control mechanism. The pressure water in the upper chamber of the piston is discharged through the quick release channel. The valve disc quickly closes to the set angle under the action of the main return water pressure (quick closing stage), and then the final sealing is completed through an independently adjustable slow closing resistance device (slow closing stage). This graded closing process can efficiently eliminate the high-pressure water hammer unique to the fire protection system and prevent damage to the pipeline network and equipment. The entire process relies entirely on hydraulic automation, without the need for external power or gas sources, meeting the high reliability requirements of firefighting equipment.
